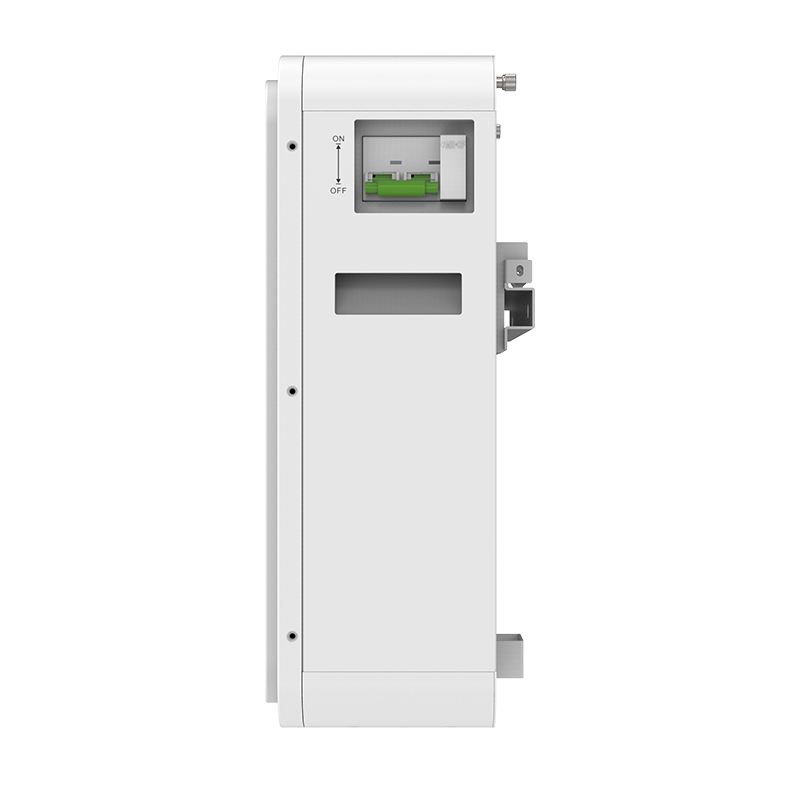

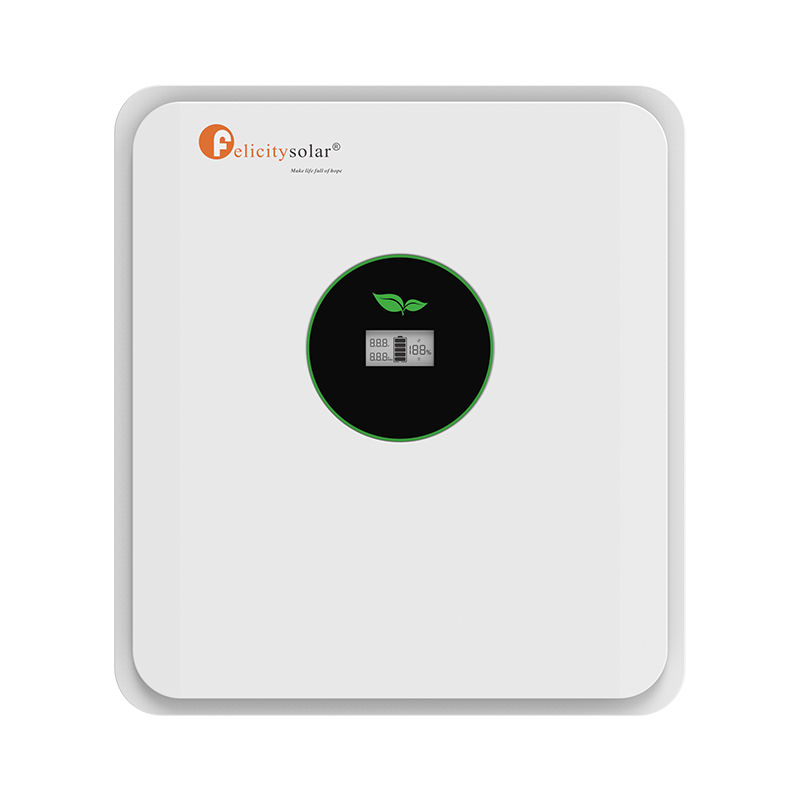

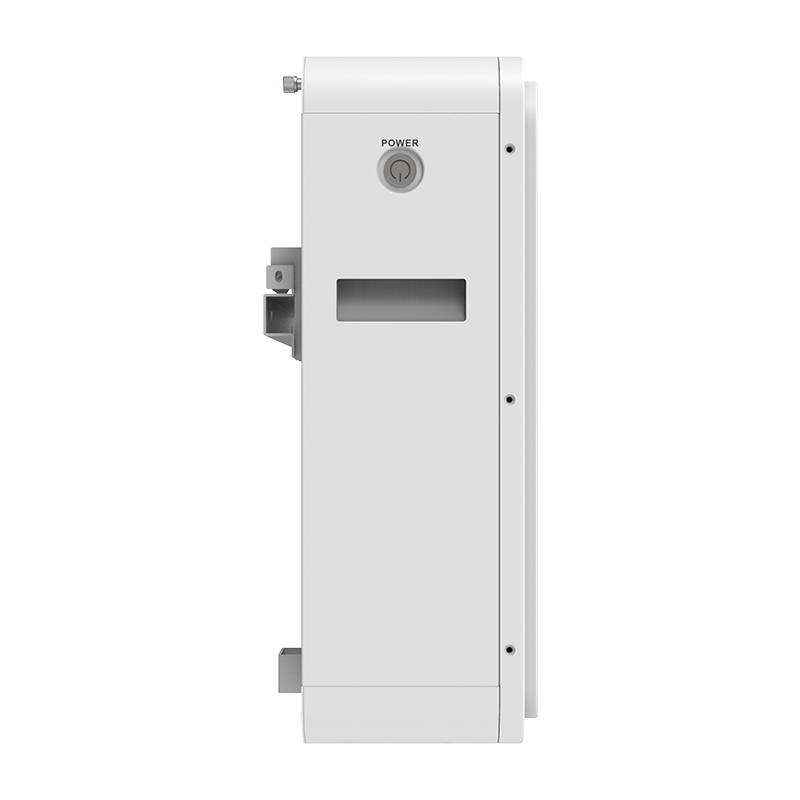

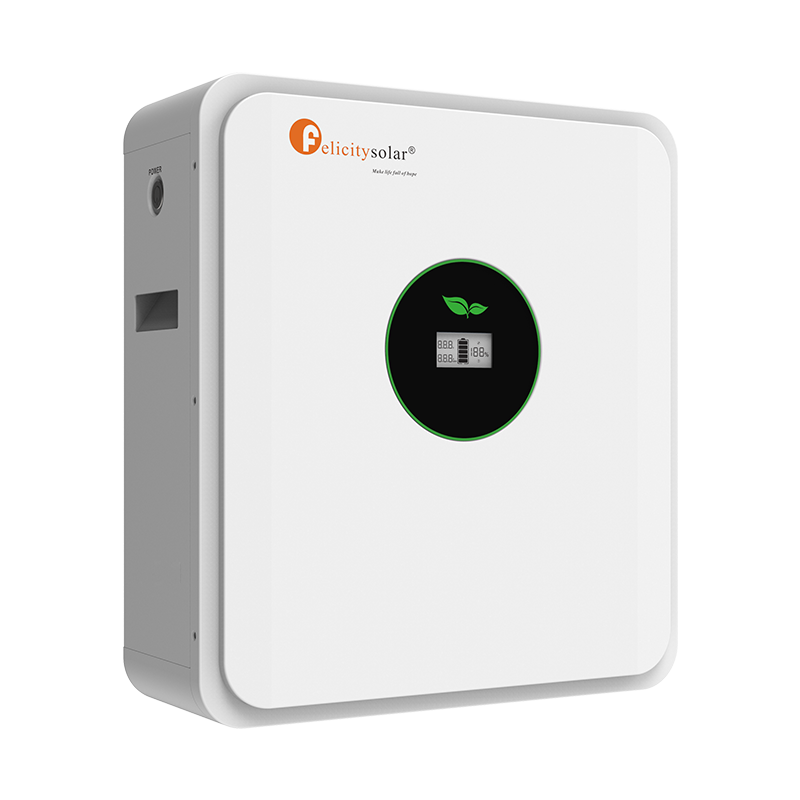

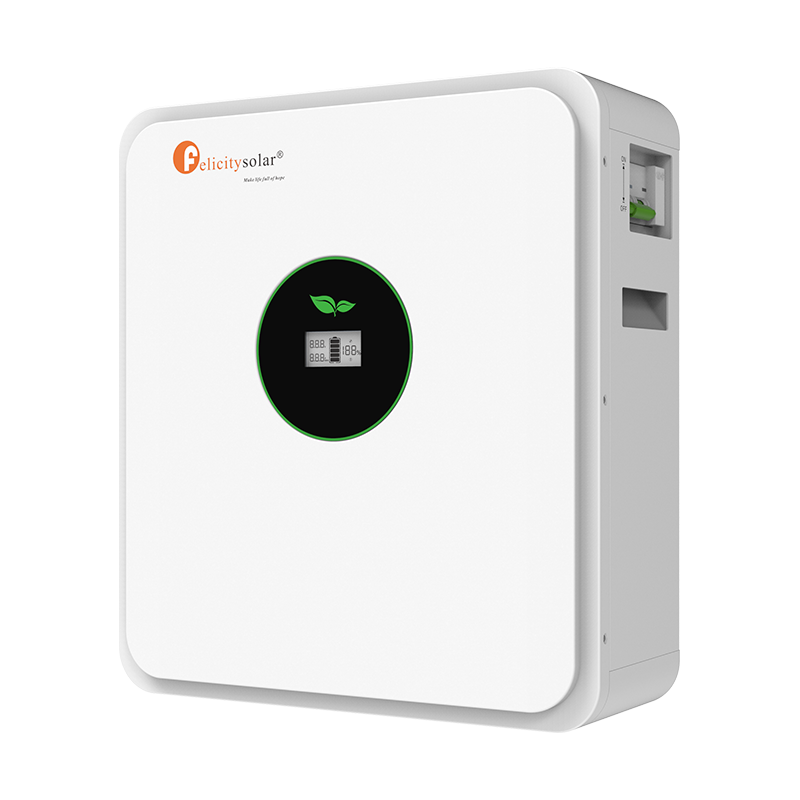

FLA Series
FLA 24200
5kWh
Low Voltage
Up to 15 units
Wall-Mounted or Floor-Mounted
Built-in Wifi
Starting from: $835
(Final price depends on order quantity, configuration, and delivery location.
Volume and partner pricing available upon request for qualified partners.)
Product Introduction
The battery system main using solar power system for family house.
It also have a with to controller the battery easily and protect our Household application timely.
It also have a with to controller the battery easily and protect our Household application timely.
Product Advantages
● Scalable expansion up to 15 pcs in parallel.
● Built-in WiFi for remote monitor the battery pack data.
● Flexible Installation: wall-mounted or floor-mounted
● LiFePO4: Higher safe performance and longer cycle life
● Multiple Protection with built-in smart BMS, breaker and fuse.
● Compatible with leading inverter brands
● Up to 10-year long warranty.
● FLA24200 Certification：UN38.3
● Built-in WiFi for remote monitor the battery pack data.
● Flexible Installation: wall-mounted or floor-mounted
● LiFePO4: Higher safe performance and longer cycle life
● Multiple Protection with built-in smart BMS, breaker and fuse.
● Compatible with leading inverter brands
● Up to 10-year long warranty.
● FLA24200 Certification：UN38.3
Model
FLA24200
Operating Voltage
22.4-28.8V
Energy
5kWh
Scalability
Up to 15 units in parallel(75kWh)
Depth of Discharge(DOD)
≥95%
Cycle Life
≥6,000 Cycles
Communication
RS485 / CAN
Protection Level
IP21
Download
- [Certificate for Safe Transport of Goods by Sea] GDFLS2F1A01YM501 (FLA24200)
- [Certificate for Safe Transport of Intended cargo by Road] GDFLS2F1A01YL501 (FLA24200)
- [Hazard and Classification Identification] GDFLS2F1A01DI01 (FLA24200)
- [Hazard Information Label] GDFLS2F1A01DI02 (FLA24200)
- [MSDS] GDFLS2F1A01SDS01 (FLA24200)
- [UN38.3 TEST REPORT] GDFLS2F1A01U01 (FLA24200)
- [UN38.3 TEST Summary] GDFLS2F1A01G01 (FLA24200)
